Remote Sample Heads
Microbial Air Sampler
When conducting microbiological active air sampling (i.e., aseptic monitoring) in a biological safety cabinet (BSC), isolator, or RABS, it is best practice to use a remote sample head with the air sampler located outside the enclosed clean area. Ensuring you have the proper type of remote sample head is key to a seamless integration.
The first consideration is the type of exhaust tubing, and the next is your preferred mounting for the tubing (horizontal or vertical).
Portable Microbial Air Sampler with Silicon Braided Tubing
When performing remote sampling with Climet's CI-9x portable air sampler, the best practice is to use an adapter, silicon braided tubing, and a remote sample head with either a vertical or horizontal mount.
Constructed of 6061-T6 aluminum and clear anodized after fabrication. The adapter head provides a surface that is autoclavable, inert to VHP, and compatible with most commonly used antibacterial cleaning solutions. The adapter head connects to the air sampler. Autoclavable silicon braided tubing is used to connect to the stainless steel remote sample head. Per the images below, Climet offers both a side port (most popular) or bottom port assemblies:
Autoclavable and inert to VHP, constructed of 6061-T6
aluminum and clear anodized, the adapter is compatible with
most commonly used antibacterial cleaning solutions.
Autoclavable silicon braided tubing used for remote sampling

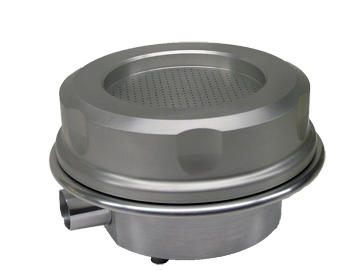

Stainless steel autoclavable side port remote adapter head
for use with silicon braided tubing
Stainless steel autoclavable
bottom port remote adapter head
for use with silicon braided tubing

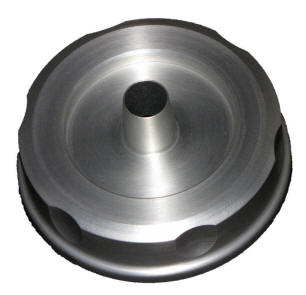

Adapter Sample Head
Climet p/n: 01210104

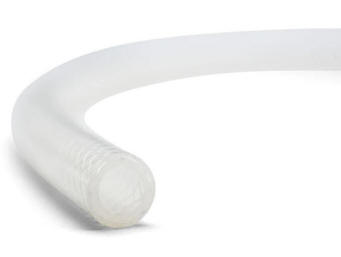

3/4 inch ID Silicon Braided Tubing
Climet p/n: 73306100
Side Port Remote Adapter Head
Climet p/n: 01245011
Bottom Port Remote Adapter Head
Climet p/n: 01245111
Stainless Steel Tubing
Stainless steel tubing is generally recommended in critical areas, and for these applications Climet recommends a CI-99 air sampler. When you order a CI-99 the part number will indicate whether you want a bottom port or side port mounting plate assembly with your instrument. An aluminum or stainless steel sample head, quick clamp, and gasket are sold separately, or can be ordered as spares.

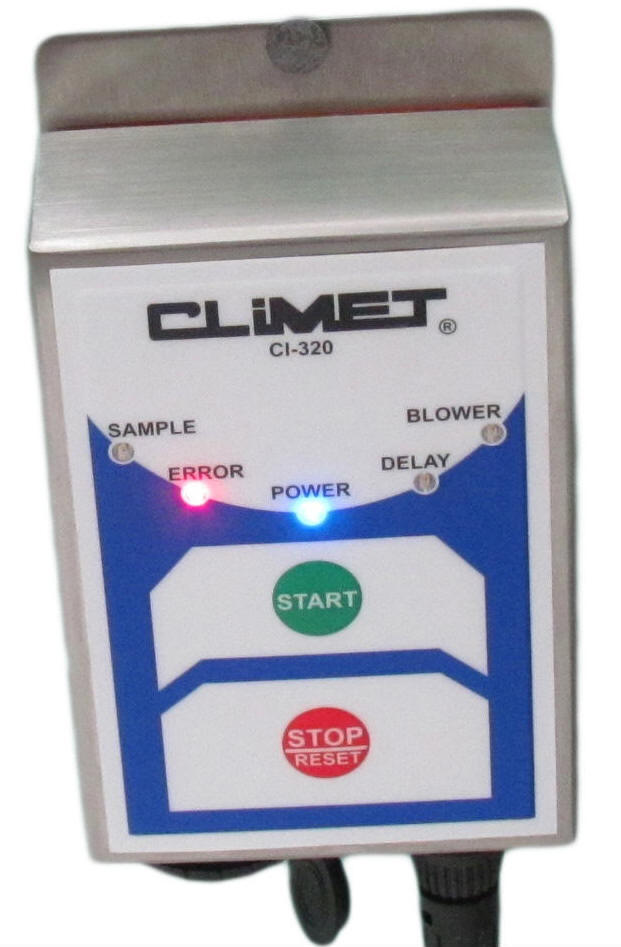

CI-320
Remote Control for CI-99
Climet p/n: 95032000
OPTIONAL: Manual remote control for CI-99 fixed location
microbial air sampler

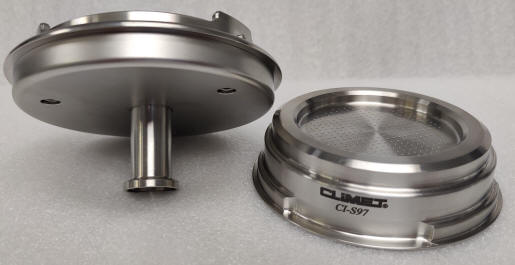

Stainless Steel Bottom Port
Remote Sample Head
Climet p/n: 01266100
CI-S97 stainless steel
or CI-A97 aluminum sample head purchased separately

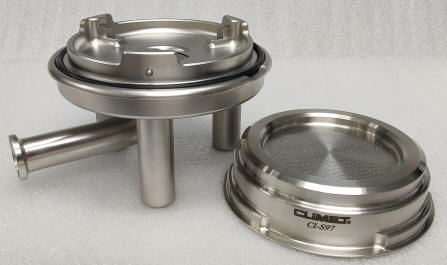

Stainless Steel Side Port
Remote Sample Head
Climet p/n: 01266102
CI-S97 stainless steel or CI-A97 aluminum sample head purchased separately

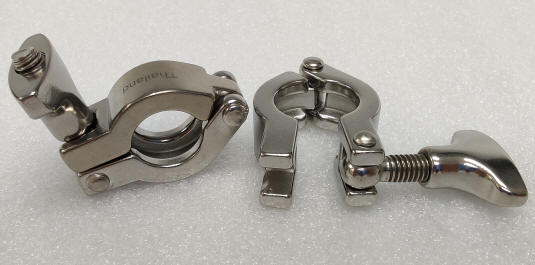

Stainless Steel Quick Clamp
Climet p/n: 13203400

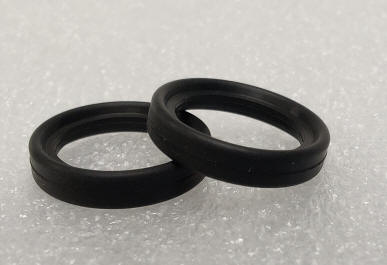

Quick Clamp Gasket
Climet p/n: 75086900

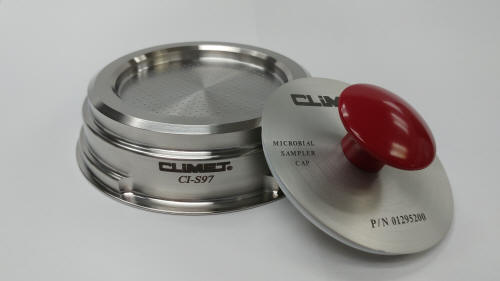

Sample Head and Cap
Options for stainless steel/Aluminum, flow rate, RODAC or 90mm petri dish
petri dishes
